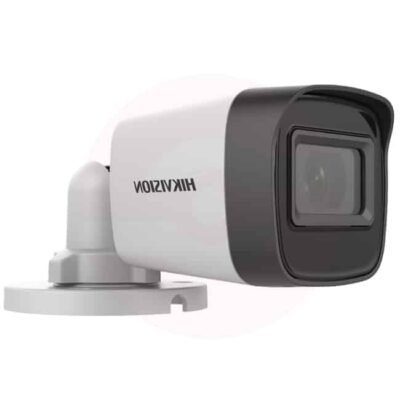

HIKVISION 16D0T-EXIPF | 2MP BULLET CAMERA
HIKVISION 16D0T-EXIPF | 2MP BULLET CAMERA Original price was: ₨3,800.00.Current price is: ₨2,950.00.

Hikvision 1080P Lite 4-ch eDVR with 512GB Embedded SSD Storage

Original price was: ₨23,000.00.Current price is: ₨20,500.00.

  • 1080P MP Lite 4-ch eDVR with 330G embedded SSD storage(2 week recording)
  • Hikvision eDVR supports H.265-based scene-adaptive bitrate coding applied on eDVRs to ensure sufficient storage and quality video compression.
  • The eSSD applied in Hikvision DVRs/NVRs/IPCs are integrated with Hikvision’s data management technology.
  • eDVR with eSSD is featured with low power consumption, reducing the cost on daily electricity use, and contributes to energy saving.
  • Easy to setup & install: Palm-sized DVR makes it so much easier to install in real application. When in daily operation, the built-in E-UI enables intuitive and simple configuration.
Categories: , ,
Description
  • Motion Detection 2.0
  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

  • Video and Audio
  • IP Video Input

    1-ch

    Up to 1080p resolution

    Support H.265+/H.265 IP cameras

  • Analog Video Input

    4-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input4-ch via coaxial cable
  • Audio Output1-ch via HDMI
  • Synchronous playback4-ch
  • Recording
  • Video CompressionH.265 Pro/H.265
  • Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
  • Frame Rate

    Main stream:

    1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)

    Note:

    1080p Lite/720p is 15 fps by default

    Sub-stream:

    4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)

  • Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
  • Stream Type

    Video, Video & Audio

    Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Total Bandwidth

    64 Mbps

    Incoming bandwidth: 4 Mbps

  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • Capacity

    Built-in 330 GB eSSD (300 GB available)

    Note:

    The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only.

  • USB InterfaceRear panel: 2 × USB 2.0
  • Alarm In/OutN/A
  • General
  • Power Supply12 VDC, 1 A
  • Consumption≤ 5.4 W (with eSSD)
  • Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)
  • Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
