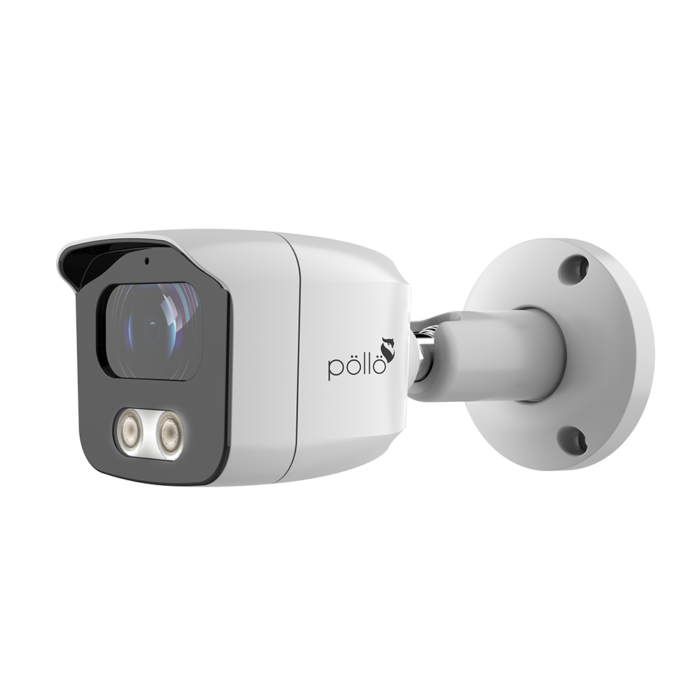

PLC-428M-IR3 PR

Camera Specifications: PLC-428M-IR3/PR

General Overview

• Image Sensor: 1/1.8″ OV High Resolution CMOS Sensor
• Image Resolution: 8 MP (3864 * 2218)
• Effective Pixels: 3864 (H) * 2218 (V)
• Video Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
• TV System: PAL/NTSC
• Electronic Shutter Time:
  • Auto: PAL 1/25 – 1/10000 s; NTSC 1/25 – 1/10000 s
• Minimum Illumination: 0.01 Lux
• S/N Ratio: ≥52 dB
• Scanning System: Progressive
• Video Output: Network
• Reset Button: Optional

Lens & Focus

• Focal Length: 3.6 mm / 6 mm
• Focus Control: Fixed
• Lens Type: Fixed
• Pixels: 8 MP

Infrared (IR) Features

• Infrared LEDs: 42 µ x 4 pcs
• Infrared Distance: 30 m (98.43 ft)
• IR Status: Auto-control
• IR Power On: Auto-control

Networking & Protocols

• Ethernet: RJ-45 (10/100 Base-T)
• Protocols:
  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
• ONVIF: Supports ONVIF 2.4
• P2P: Yes, supports QR Code
• PoE: Internal, supports IEEE 802.3af
• Video Delay: 0.3 s (within LAN)

Video Streams

• Main Stream 1:
  • 3840 * 2160 @ 20 fps
  • 3072 * 2048 @ 30 fps
• Main Stream 2:
  • 2592 * 1944 @ 30 fps
  • 2560 * 1920 @ 30 fps
• Tri-stream:
  • 352 * 288 @ 20 fps
  • 352 * 288 @ 30 fps

Web Browser & Smart Phone Compatibility

• Web Browser:
  • IE8 – 11, Google Chrome (Lower than Ver44), Firefox (Lower than Ver53), Mac Safari (Lower than Version 12)
• Smartphone:
  • iPhone, iPad, Android, Android Pad

Image & Video Features

• Day/Night: Color/Black and White (IR-CUT)
• Image Configuration:
  Saturation, Brightness, Contrast, Sharpness, Mirror, 3DNR, White Balance, FLK (Flicker Control)
• Corridor Pattern: Yes
• Defog Mode: Yes
• ROI (Region of Interest): Yes
• BLC (Backlight Compensation): Yes
• WDR (Wide Dynamic Range): DWDR: 50 dB
• Motion Detection: Yes
• Privacy Masking: 3 Rectangular Zones
• Recording Mode: NVR, CMS, Web

Audio & Storage

• Audio: Optional
• SD Card Slot: Yes, supports up to 128 GB

Housing & Protection

• Housing: Metal
• Anti-cut Bracket: Yes
• IR Cut Filter: Yes
• Ingress Protection: IP67 (dust and water-resistant)

Environment & Power

• Operating Temperature: -20°C to +60°C (-4°F to 140°F), RH 95% max
• Power Source: DC 12 V ± 10%, 950 mA
• Power Consumption: Not specified
• Dimensions: 157 (W) x 70 (H) x 66 (D) mm (6.18″ x 2.76″ x 2.60″)
• Weight: 650 g (1.43 lb)
